Cylinders
Cylinders
● Capacity: 12 - 100 Tons
● Stroke: 8 - 160 mm
● Max. Working Pressure: 700 bar / 10,000 psi
● All cylinders are single acting with spring return.
● Pistons hard chromed.
● Cylinders inside roll-polished.
● Cylinders outside blasted with black nitriding finish.

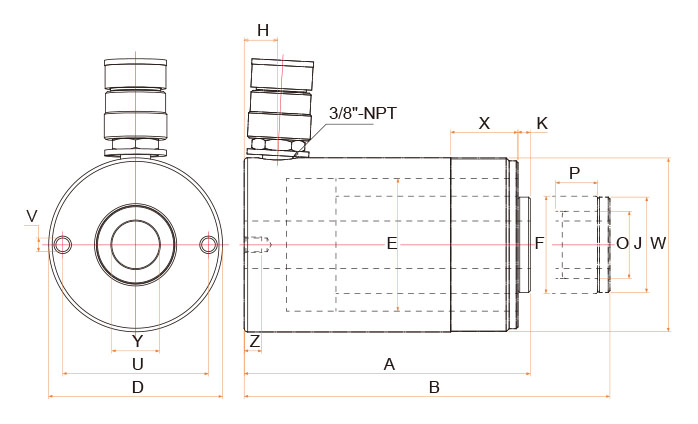

SHS Series, Hollow Plunger Cylinders
|
ITEM NO |
Capacity |
Stroke |
Cylinder |
Oil Cap |
A |
B |
D |
E |
F |
H |
J |
K |
O |
P |
U |
V |
Z |
W |
X |
Y |
Weight |
|
Height (mm) |
|||||||||||||||||||||
|
Retracted |
Extended |
||||||||||||||||||||
|
SHS120 |
12 |
8 |
18.5 |
14.8 |
60 |
68 |
73 |
54 |
35 |
12.5 |
- |
- |
3/4"-16 |
16 |
50.8 |
5/16"-18 |
9 |
2 3/4"-16 |
33 |
19.5 |
1.8 |
|
SHS121 |
42 |
18.9 |
79 |
120 |
162 |
55 |
19 |
- |
- |
12.7 |
3.1 |
||||||||||
|
SHS1211 |
42 |
18.9 |
79 |
120 |
162 |
55 |
19 |
3/4"-16 |
16 |
12.7 |
3.1 |
||||||||||
|
SHS123 |
76 |
18.9 |
143.2 |
184 |
260 |
55 |
19 |
- |
- |
12.7 |
4.5 |
||||||||||
|
SHS202 |
20 |
51 |
34 |
173 |
162 |
213 |
98.5 |
75 |
55 |
19 |
54 |
7 |
1 9/16"-16 |
25 |
82.6 |
3/8"-16 |
9.4 |
3 7/8"-12 |
38 |
27 |
7.5 |
|
SHS206 |
155 |
34 |
527 |
306 |
461 |
13.5 |
|||||||||||||||
|
SHS302 |
30 |
65 |
47.8 |
310 |
178.5 |
243.5 |
117 |
90 |
65 |
21.5 |
59.9 |
0.5 |
1 7/8"-16 |
25 |
92 |
3/8"-16 |
14 |
4 1/2"-12 |
42 |
34 |
11.4 |
|
SHS306 |
160 |
47.8 |
763 |
330 |
490 |
19.7 |
|||||||||||||||
|
SHS603 |
60 |
76 |
89.6 |
680 |
247.5 |
323.5 |
158.6 |
125 |
90 |
32 |
89 |
12.5 |
2 3/4"-16 |
25 |
130 |
1/2"-13 |
14 |
6 1/4"-12 |
50 |
54 |
26.8 |
|
SHS606 |
152 |
89.6 |
1360 |
323.5 |
475.5 |
34 |
|||||||||||||||
|
SHS1003 |
100 |
76 |
143 |
1085 |
254 |
330 |
213 |
165 |
125 |
38 |
125 |
12 |
4"-16 |
30 |
178 |
5/8"-11 |
19 |
8 3/8"-12 |
60 |
79 |
50.1 |
