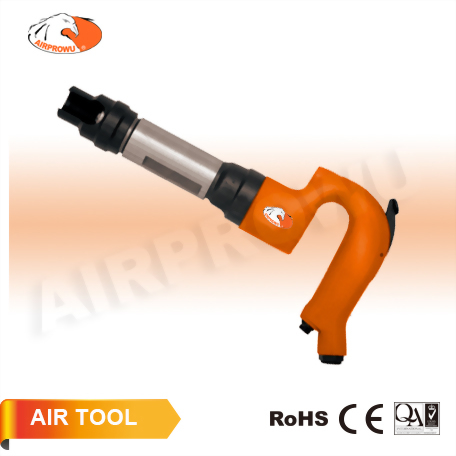

Air Chipping Hammer

Model : SA7401(H)/SA7402(H)/SA7403(H)/SA7404(H)

Menge :

Beschreibung
Technische Bedingungen

SA7401 (H) 1" (2,820 BPM)
SA7402 (H) 2" (2,400 BPM)
SA7403 (H) 3" (1,920 BPM)
SA7404 (H) 4" (1,500 BPM)
Air Chipping Hammer

● Blow Per Min: 2,820 / 2,400 / 1,920 / 1,500 BPM

SA7401 (H) 1" (2,820 BPM)
SA7402 (H) 2" (2,400 BPM)
SA7403 (H) 3" (1,920 BPM)
SA7404 (H) 4" (1,500 BPM)
Air Chipping Hammer

Model No.	Blows Per Minute	Chisel Shank Diameter (mm)		Piston Stroke		Piston Diameter		Net Weight		Overall Length		Air Inlet	Hose Size	Air Cons.
	打擊次數	鑿刀柄直徑		行程		活塞直徑		重量		長度		進氣口	氣管	耗氣量
	B.P.M	Round	Hex	Inch	mm	Inch	mm	lb	kg	Inch	mm	PT(NPT)	Inch	CFM	LPM
SA7401(H)	2,820	17.3	14.7	1.00	25	1.13	29	12.1	5.5	12.13	308	3/8"	1/2	-	-
SA7402(H)	2,400			2.00	51			13	5.9	12.88	327
SA7403(H)	1,920			3.00	76			14.3	6.5	12.13	308
SA7404(H)	1,500			4.00	102			15.4	7	16.13	410
