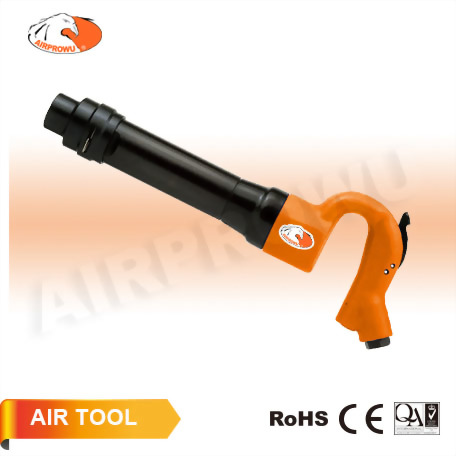

4" Air Chipping Hammer
SA7430H Hex Shank
4" Air Chipping Hammer
● Blow Per Min: 1,600 BPM
● Round Shank: Ø 17.2 (0.68")
● Hex Shank: Ø 14.7 (0.58")
SA7430H Hex Shank
4" Air Chipping Hammer
|
Model No. |
Blows |
Chisel Shank |
Piston |
Piston |
Net |
Overall |
Air Inlet |
Hose |
Air |
||||||
|
打擊次數 |
鑿刀柄直徑 |
行程 |
活塞直徑 |
重量 |
長度 |
進氣口 |
氣管 |
耗氣量 |
|||||||
|
B.P.M |
Round |
Hex |
Inch |
mm |
Inch |
mm |
lb |
kg |
Inch |
mm |
PT(NPT) |
Inch |
CFM |
LPM |
|
|
SA7430R(H) |
1,600 |
17.2 |
14.7 |
5.5 |
141 |
1.1 x 3.0 |
28.5 x 76.5 |
18.3 |
8.3 |
18.6 |
472 |
3/8" |
1/2 |
13.0 |
368 |
SA7430H Hex Shank
4" Air Chipping Hammer
● Unique ring valve as standard for harder blow in tough applications.
● Rugged construction, hardened steel cylinder and handle.
● Spline locking to prevent loosening of handle or cylinder.
● Available in 1", 2", 3" or 4" stroke cylinder versions.
● Pistol grip handle with self closing outside trigger.
● Chrome plated cylinder for extra durability.
● Powerful, yet compact and lightweight.
● Teasing throttle for precise control.
● Choice of bushing: 0.58" Hex, prevents chisel rotation,
0.68" Round, chisel rotates freely.
● Classic simplate valve.
● Heat treated cylinder.
