0.5HP Straight Type Hi-Lok Installation Tool
Straight Type Hi-Lok Installation Tool
w/o Attachment
● Free Speed: 500 RPM
● Horse Power: 0.5 HP (373 W)
● ACC-131SG, ACC-131LG, ACC-132AG
(Optional)
Optional Accessories
Optional Socket
● (1/2" ): 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 5/32"
● (1"): 3/16", 7/32", 1/4", 9/32", 5/16", 7/16", 11/32", 3/8", 5/32"
● (50mm): 6, 7, 8,9 mm
● (12.7mm): 5, 6, 7, 8, 9, 10, 12, 14 mm
● (25.4mm): 5 mm
Optional Hex. Tip (Bit)
● (1/2" DR ): 1/16", 5/64", 3/32", 1/8", 5/32"
● (1" DR ): 1/16", 5/64", 3/32", 1/8"
● (50mm DR ): 1.5, 2.0 mm
● (12.7mm DR ): 1.0, 1.5, 2.0, 2.5, 3.0, 4.0 mm
● (25.4mm DR ): 1.0, 1.5, 2.0, 2.5, 3.0, 4.0 mm

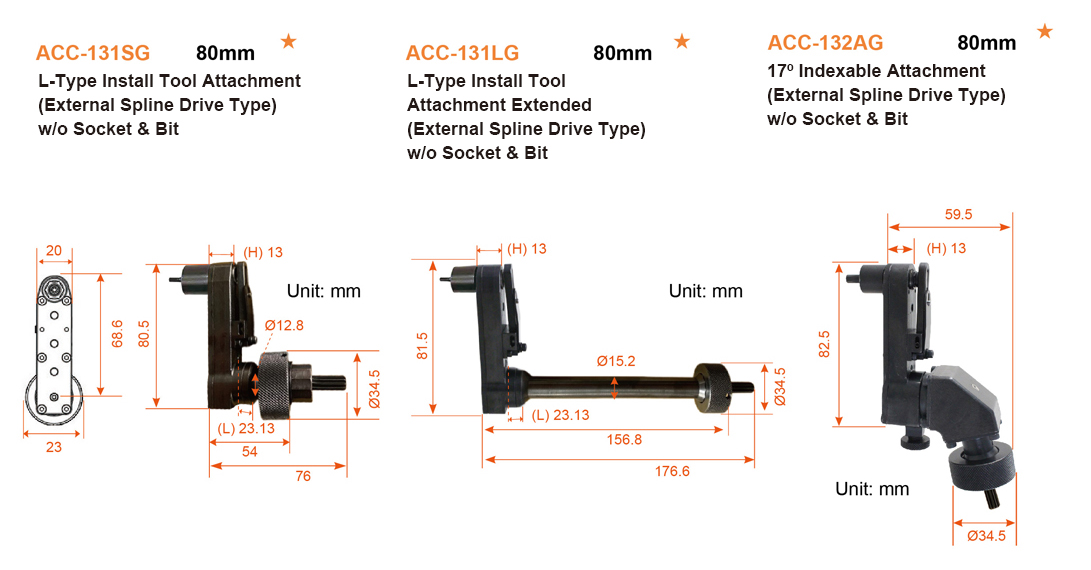

Selection Table For L-Type Hi-Lok Installation Tool Attachments
Straight Type Hi-Lok Installation Tool
w/o Attachment
|
Model No. |
Horse |
Free |
Net |
Overall |
Air |
Air |
Air |
Hose Size |
Sound |
||||||
|
馬力 |
無負載轉速 |
重量 |
長度 |
進氣口 |
空氣壓力 |
耗氣量 |
氣管 |
嗓音值 |
|||||||
|
HP |
W |
R.P.M |
lb |
kg |
Inch |
mm |
NPT(PT) |
psi |
bar |
CFM |
L/min |
Inch |
mm |
dBA |
|
|
SA6638 |
0.5 |
373 |
500 |
1.43 |
0.65 |
7.01 |
178 |
1/4"-18 |
90 |
6.2 |
10 |
283 |
3/8 |
10 |
84 |
