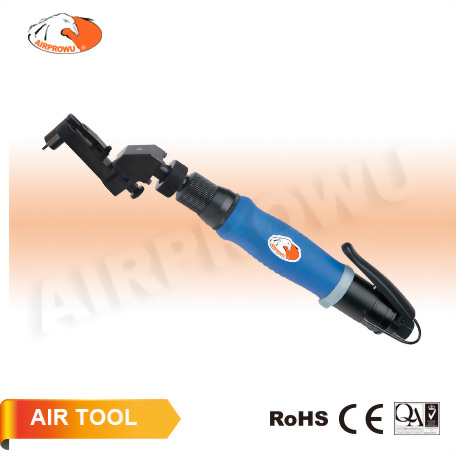

Straight Type Hi-Lok Installation Tool (Torque Control Tool) w/ 17º Indexable Attachment
SA-R110A320-132A 320 RPM
Straight Type Hi-Lok Installation Tool (Torque Control Tool)
w/ 17º Indexable Attachment
● Free Speed: 500/320 RPM
● Driver:12.7 mm (1/2"), Hex: 10
● Bit: 4.0 mm
SA-R110A320-132A 320 RPM
Straight Type Hi-Lok Installation Tool (Torque Control Tool)
w/ 17º Indexable Attachment
Optional:
● Bit Size(1/2") : Hex: 4.0 mm (5/32")
● Driver Size(1/2") : Hex: 6,7,8,9,10,12,14 mm (3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 5/32")
● Special Driver Size(1") : Hex: 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 5/32"
|
Model No. |
Net |
Free |
Torque |
Air |
Repeatability |
Air |
Mini Air |
Noise |
||||
|
重量 |
無負載轉速 |
扭力 |
耗氣量 |
% |
氣壓 |
氣管 |
噪音值 |
|||||
|
lb |
kg |
R.P.M |
Kgf-cm |
in-lb |
Nm |
L / S |
P/L |
A |
kg/cm2 |
mm |
±2dBA |
|
|
SA-R070A500-132A |
1.98 |
0.90 |
500 |
11 - 70 |
10 - 61 |
1.0 - 7.0 |
6 |
± 2% |
± 3% |
6 |
5 |
74 |
|
SA-R110A320-132A |
2.20 |
1.00 |
320 |
13 - 76 |
11- 66 |
1.2 - 7.5 |
6 |
± 2% |
± 3% |
6 |
5 |
74 |
