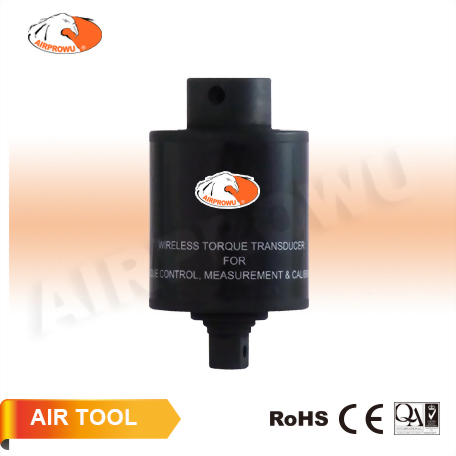

Wireless Torque Transducer (Static Type)
Wireless Torque Transducer
w/ Protective Casing
● S: Sq. Dr
● H: Hex.

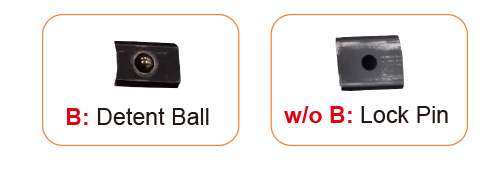

● B: Detent Ball
● w/o B: Lock Pin
● L: Extended
● Patented anti-vibration mechanism, specifically engineered to endure the intense oscillations experienced by intermittent torque tools during assembly processes.
● Optimal for
- Dynamic torque management of pneumatic impact wrenches, oil pulse wrenches for closed-loop torque regulation.

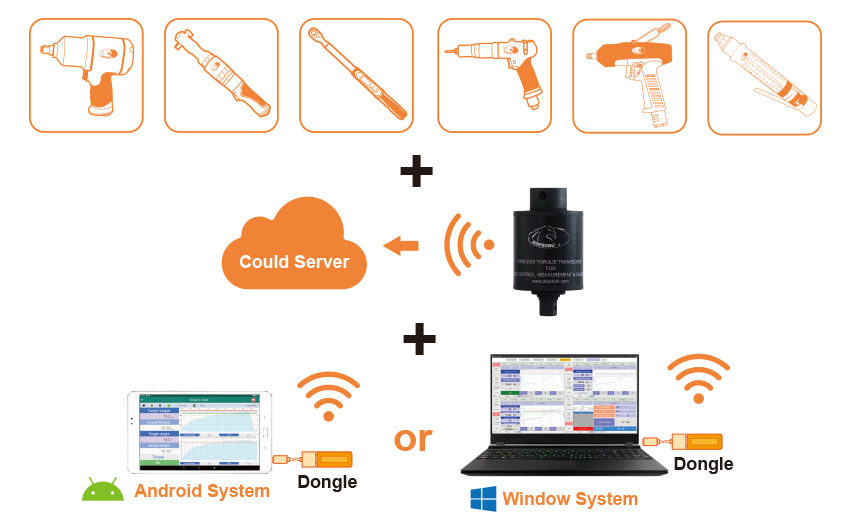

- Oil pulse wrenches, clutch-type torque tools, or torque tools featuring integrated torque mechanisms for pre-work calibration and live torque monitoring during assembly, with instant data display on a tablet via a Dongle and APP, facilitating seamless transmission to peripheral devices or cloud servers.
- Utilizing click wrench technology to instantly capture torque data upon audible click, rendering the click visible for immediate analysis.
● The singular wireless Torque Transducer tailored for utilization with impact or oil pulse torque tools in dynamic bolting applications.
● Crafted with an innovative patent-pending anti-vibration mechanism specifically engineered for dynamic bolting torque control amidst severe impacts.
Wireless Torque Transducer
w/ Protective Casing
|
Model No. |
Torque |
Inlet |
Outlet |
Profile Dia. |
Net |
Battery Capacity |
|
|
Nm |
Inch(mm) |
Inch(mm) |
mm |
kg |
lb |
V/ mAH |
|
|
Wireless Torque Transducer (Static Type) |
|||||||
|
WTT-S38S38-S20 (B) |
2 - 20 |
3/8 |
3/8 |
45 x 83 |
0.18 |
0.40 |
DC3.7V/ 650mAH |
|
WTT-S38S38-S50 (B) |
5 - 50 |
3/8 |
3/8 |
45 x 83 |
0.20 |
0.44 |
DC3.7V/ 650mAH |
|
WTT-S38S12-S100 (B) |
10 - 100 |
3/8 |
1/2 |
45 x 90 |
0.21 |
0.46 |
DC3.7V/ 650mAH |
|
WTT-S12S12-S180 (B) |
18 - 180 |
1/2 |
1/2 |
45 x 97 |
0.26 |
0.57 |
DC3.7V/ 650mAH |
|
WTT-S12S34-S250 |
25 - 250 |
1/2 |
3/4 |
45 x 104 |
0.35 |
0.77 |
DC3.7V/ 650mAH |
|
WTT-S34S34-S500 |
50 - 500 |
3/4 |
3/4 |
57 x 114 |
0.55 |
1.21 |
DC3.7V/ 650mAH |
|
WTT-S34S1-S750 |
75 - 750 |
3/4 |
1 |
57 x 114 |
0.75 |
1.65 |
DC3.7V/ 650mAH |
|
WTT-S1S1-S1000 |
100 - 1000 |
1 |
1 |
57 x 127 |
0.85 |
1.87 |
DC3.7V/ 650mAH |
|
WTT-S1S1-S1500 |
150 - 1500 |
1 |
1 |
57 x 134 |
0.95 |
2.09 |
DC3.7V/ 650mAH |
|
WTT-S1S112-S2000 |
200 - 2000 |
1 |
1-1/2 |
57 x 144 |
1.14 |
2.51 |
DC3.7V/ 650mAH |
|
WTT-S112S112-S3000 |
300 - 3000 |
1-1/2 |
1-1/2 |
86 x 166 |
3.80 |
8.38 |
DC3.7V/ 650mAH |
|
WTT-S12H17M-S180L |
18 - 180 |
1/2 |
Hex.17 |
45 x 134 |
0.50 |
1.10 |
DC3.7V/ 650mAH |
|
WTT-S12H19M-S180L |
18 - 180 |
1/2 |
Hex.19 |
45 x 134 |
0.50 |
1.10 |
DC3.7V/ 650mAH |
|
WTT-S12H21M-S180L |
18 - 180 |
1/2 |
Hex.21 |
45 x 131 |
0.50 |
1.10 |
DC3.7V/ 650mAH |
|
WTT-S12H18M-S250L |
25 - 250 |
1/2 |
Hex.18 |
45 x 94 |
0.28 |
0.62 |
DC3.7V/ 650mAH |
|
WTT-S12H24M-S250L |
25 - 250 |
1/2 |
Hex.24 |
45 x 97 |
0.34 |
0.75 |
DC3.7V/ 650mAH |
|
WTT-S12H27M-S500L |
50 - 500 |
1/2 |
Hex.27 |
57 x 102 |
0.70 |
1.54 |
DC3.7V/ 650mAH |
|
WTT-S34H27M-S500L |
50 - 500 |
3/4 |
Hex.27 |
57 x 111 |
0.75 |
1.65 |
DC3.7V/ 650mAH |
|
WTT-S34H46M-S750L |
75 - 750 |
3/4 |
Hex.46 |
57 x 128 |
0.80 |
1.76 |
DC3.7V/ 650mAH |
Optional Accessories:

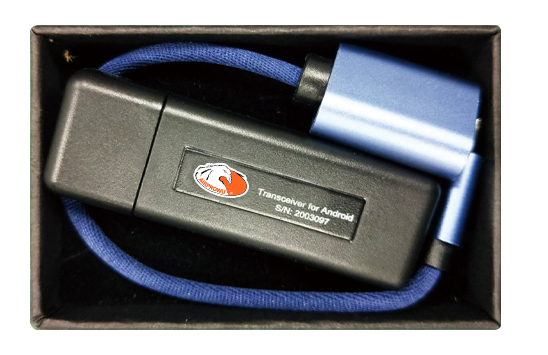

WTT-D-CP (For Android)
WTT-D-WIN (For Window)
Dongle
|
|
Window |
android |
|
Operating system |
Windows 10 |
Android 7.0 or above |
|
Minimum CPU |
Core i3 |
Quad core |
|
Minimum system memory (RAM) |
4G |
3G |
|
Minimum free storage space |
32GB |
32GB |

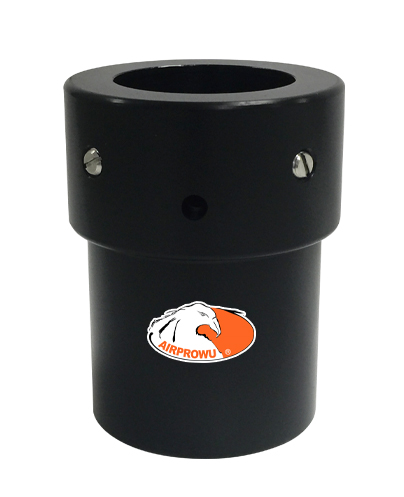

WTT-100TPC (For 20/50/100Nm)
WTT-250TPC (For 180/250Nm)
WTT-500TPC (For 500/750Nm)
WTT-2000TPC (For 1000/1500/2000Nm)
Protection Cover
Wireless Torque Transducer
w/ Protective Casing
● Measurement: Torque, Angular Movement & Pulse Count.
● RF Working Frequency: 60 channels available to be paired with WTC-A/ WTC-B.
● Functions Check:
Automatic check the status of power rate, signal quality, torque & angle, etc. when turned on.
● Switch: Use magnet to turn on.
● LED Light:
Blue/Orange twin color: Orange last long~Low Power, Blue last long~RF in communication,
Blue twinkling~pairing with Controller, Orange Twinkling~Abnormal.
Red/Green twin color: Red~In Charging, Green~Full Charge.
● Standard Packaging: Torque Transducer, Charging Cable & Magnet Switch.
● Charger : Type-C 5V/1A
● IO(1): USB Type-C *1
● IO(2) Wireless: RF 2.4G up-to 20M
● Zero Balance: <±0.5% FSD/°C
● Static Accuracy: ±1% FSD
● Temperature: -10°C~60°C
● Humidity: 10~75% Non-condensing
● Charging time: 5% to 100%, 2 hours
Warranty Period
● Torque Controller: 12 months from purchase date.
Manufacturer will repair or replace, any defects due to faulty materials or workmanship. This Warranty does not cover part failure due to broken / missing seal label, misuse, modification, negligence, abuse or normal wear and tear.
● Transducer: WTT-S-S(H)-D series: 12 months from purchase date or 200,000 cycles.
WTT-S-S(H)-S & WTT-H-H-C series: 12 months from purchase date or 500,000 cycles.
● Battery: 3 months from purchase date.
● Signal acquisition board: 12 months from purchase date.
Manufacturer will repair or replace, any defects due to faulty materials or workmanship. This Warranty does not cover part failure due to over torque, using WTT-S-S(H)-S series on impact tools or cordless tools, broken /missing seal label, misuse, modification, negligence, abuse or normal wear and tear.
● Dongle: 12 months from purchase date.
Wireless Torque Transducer
w/ Protective Casing
● Oil Pulse Wrench, Impact Wrench, Geared Wrench, Torque Wrench, Clutch Type Screwdriver, Torque Tool & Click Wrench.
