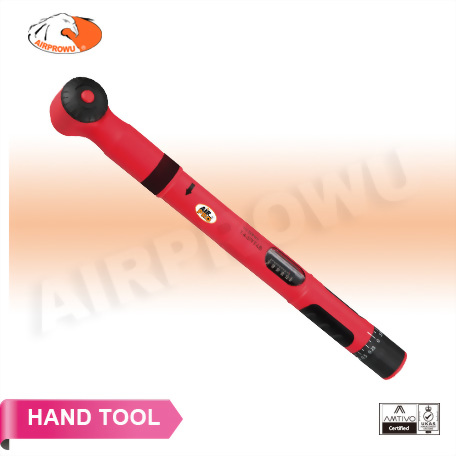

VDE Insulated Torque Wrench
VDE Insulated Torque Wrench
● Tolerance of torque ±3%.
● Insulated click type torque wrench with robust 72 teeth ratchet.
● Quick release design.
● Easy torque adjustment with pull-out collar design brings the energy-saving benefit.
● Additional micrometer scale for accurate torque setting.
● Easy-to-read dual scale N-m and Ft-lb below the window.
● Applied to both clockwise and counterclockwise directions.
● Ensure safety on electrical equipment up to 1000V AC or 1500V DC.
● Ideal for use on hybrid and electric vehicles.
● Ergonomic insulated grip provides protection against electric shock.
● Quality meets VDE international standard - IEC 60900.
● Quality meets DIN ISO 6789 & ASME B107.300.2010.
VDE Insulated Torque Wrench
● 1) 72 teeth ratched head: A highly robust ratchet mechanism for CW and CCW
directions application. Quick released design for changing socket quickly.
● 2) Reliable mechanism: Equipped with a durable fully chromed steel tube mechanism
for industrial applications. An audible and tactile click clearly indicates when the preset
torque is reached. Insulated with red PP and a black ring-shaped TPR flame-retardant
composite, providing high impact resistance and reliable protection for electrical work.
● 3) Serial number: Each piece lasering serial number for traceability.
● 4) Scales: Dual scale (N·m / ft-lb) with a clear PC window design. High-contrast
white markings on a black background ensure excellent readability.
● 5) Ergonomic insulated grip: Flame-retardant red PP and black TPR
construction ensures reliable protection against electric shock.
● 6) Adjustment system: Pull-out knob design allows easy torque
adjustment with automatic locking of the preset torque setting.
● 7) End cap: Flame retarded PP for safety.
|
ITEM NO. |
Square |
Teeth |
Torque Range |
Graduation |
Length |
Weight |
|
|
Nm |
lbf.ft |
mm |
g |
||||
|
VDE-STW941401 |
1/4" |
72 |
2-10 |
1.5-7.4 |
0.1 |
- |
- |
|
VDE-STW941402 |
1/4" |
72 |
5-25 |
3.5-18 |
0.2 |
- |
- |
|
VDE-STW943801 |
3/8" |
72 |
10-50 |
7.4-37 |
2.5 |
364 |
860 |
|
VDE-STW943802 |
3/8" |
72 |
20-100 |
14.8-74 |
5 |
- |
- |
|
VDE-STW941201 |
1/2" |
72 |
10-50 |
7.4-37 |
2.5 |
364 |
860 |
|
VDE-STW941202 |
1/2" |
72 |
20-100 |
14.8-74 |
5 |
- |
- |
