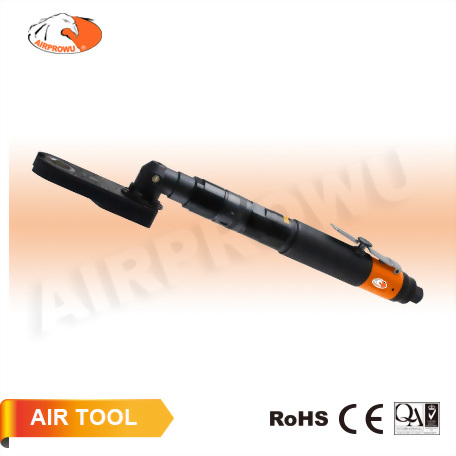

Shut Off Air Open-End Wrench
Shut Off Air Open-End Wrench
● Rear Exhaust
● Air Shut Off
● Hex Size: 17,18,19,20,21,22,23,24 mm, 11/16"
|
Model No. |
A |
B |
C |
D |
E |
F |
G |
|
|
SA-EW24 |
57.2 |
14 |
18 |
20.6 |
46.6 |
48 |
83.2 |
Standard Type
|
Model No. |
Forward & Reverse |
Hex Size |
K |
|
SA-EW24-17 |
|
17mm |
11.3 |
|
SA-EW24-19 |
19mm |
13.1 |
|
|
SA-EW24-21 |
21mm |
15.0 |
|
|
SA-EW24-22 |
22mm |
15.2 |
|
|
SA-EW24-24 |
24mm |
16.1 |
|
|
SA-EW24-1116 |
11/16" |
11.5 |
Insert Type
|
Model No. |
Forward & |
Hex Size |
K |
|
SA-EW24-SR12 |
|
12mm |
12.1 |
|
SA-EW24-SR13 |
13mm |
13.1 |
|
|
SA-EW24-SR14 |
14mm |
14.1 |
|
|
SA-EW24-SR15 |
15mm |
15.1 |
|
|
SA-EW24-SR16 |
16mm |
16.1 |

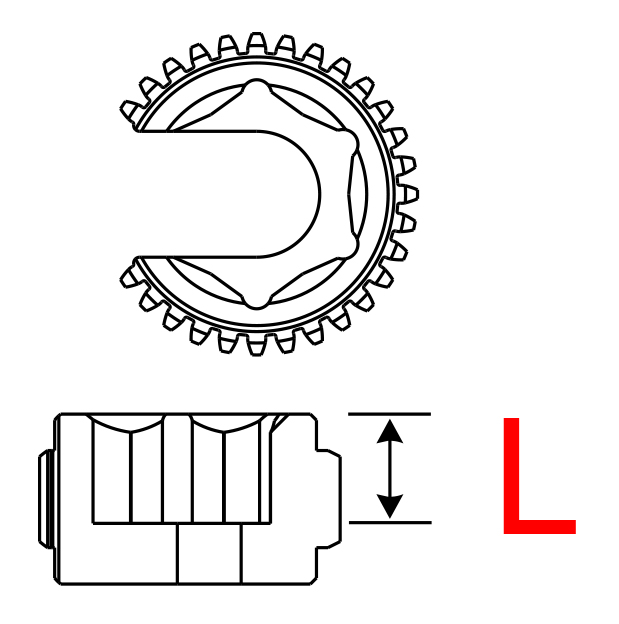

Bline Type
|
Model No. |
Forward |
Hex Size |
K |
L |
|
SA-EW24-BD17 |
|
17mm |
11.3 |
9.0 |
|
SA-EW24-BD18 |
18mm |
12.0 |
9.0 |
|
|
SA-EW24-BD19 |
19mm |
13.1 |
9.0 |
|
|
SA-EW24-BD20 |
20mm |
13.5 |
9.0 |
|
|
SA-EW24-BD21 |
21mm |
15.0 |
9.0 |
|
|
SA-EW24-BD22 |
22mm |
15.2 |
9.0 |
|
|
SA-EW24-BD23 |
23mm |
15.5 |
9.0 |
|
|
SA-EW24-BD24 |
24mm |
16.1 |
9.0 |
Shut Off Air Open-End Wrench
|
Model No. |
Hex Size |
Max. |
Free |
Air Cons. |
Overall |
Air Inlet |
Net |
Sound |
|||
|
六角尺寸 |
最大扭力 |
無負載轉速 |
耗氣量 |
長度 |
進氣口 |
重量 |
嗓音值 |
||||
|
mm |
Nm |
R.P.M |
CFM |
L/min |
Inch |
mm |
P.T |
lb |
kg |
dBA |
|
|
SA-EW24 |
17,18,19,20,21,22,23,24, 11/16" |
9 ~ 19 |
150 |
7 |
198 |
17.24 |
438 |
1/4 |
4.05 |
1.84 |
87 |
(Air Pressure at 90 psi, 6.2 bar , 6.3 kg/cm2)
