Oil Pulse Low Recoil w/Torque Display Shut-Off Air Screwdriver
Oil Pulse Low Recoil
w/Torque Display Shut-Off Air Screwdriver
( Straight Type Push Start )

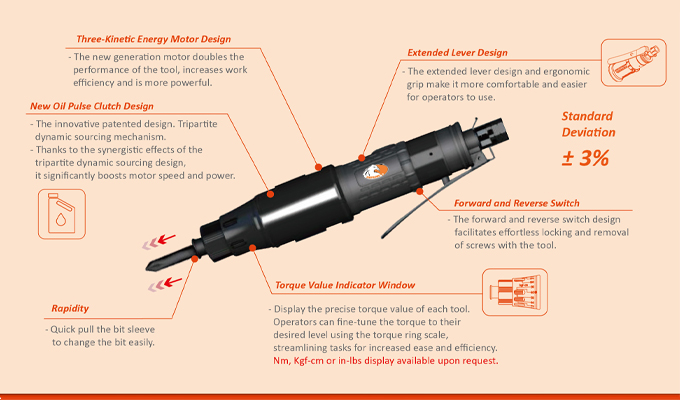

● Using the lastest patented oil pulse clutch design,it can pr oduce extremely low recoil and reduce the operator’s burden.
● The tool will automatically stop when the set torque value i s locked.
● Suitable for high-precision industries,with high locking rep eatability.
● Equipped with a mechanical torque display,there is no need t o use a torque tester to calibrate each time.
You can confirm the current working torque at a glance.
● The forward and reverse switch design allows the tool to eas ily lock and remove screws.
● Machine capability index > 1.67 @ ±10% according to ISO5393.
● Tool performance testing and certification according to VDI/V DE 2647.
● Specification of bit : 1/4”HEX 、 3/8”SQ.
Oil Pulse Low Recoil
w/Torque Display Shut-Off Air Screwdriver
( Straight Type Push Start )
|
Model No. |
Torque |
Free |
Mini Air |
Air |
Air |
Noise |
Standard |
Net Weight |
Length |
Fastening Capacity |
|||
|
扭力 |
無負載轉速 |
氣管 |
氣壓 |
耗氣量 |
噪音值 |
% |
Push |
Push |
Machine |
Tapping |
|||
|
Push Start |
Nm |
Kgf-cm |
R.P.M |
mm |
kg/cm2 |
m3min |
±2dBA |
P/L |
kg (lb) |
inch (mm) |
|||
|
SA-R180PVH3000 |
5 - 18 |
50 - 108 |
2,500 |
8 |
6 |
0.55 |
74 |
± 3 |
1.1 (2.43) |
9(228) |
M6.4-M8.7 |
M5.0-M7.2 |
|
