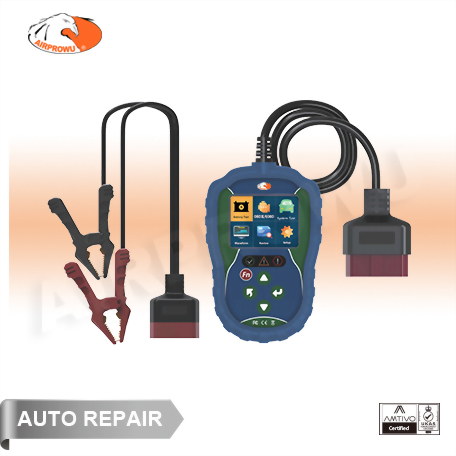

OBDIl scanner & Battery Tester
Model :
ADT-00137FC
ADT-00137FC NEW 0725
OBDIl scanner & Battery Tester
● Dual system detection, optional engine system and transmission system.
● Test the 12V/6V Lead-acid Battery CCA (cold cranking amps)/
internal resistance/voltage/state of charge/state of health.
● Test the 24V/12V vehicle starting system and charging system.
● Built-in LED lights for battery and OBD II diagnosis status.
● One-key quick test function for batch battery continuous test,
real-time voltage curve, OBD II diagnosis.
● Real-time voltage curve graphic display, can be saved up to 120 seconds and played back.
● Can save up to 1750 historical test records,
including battery test, starting test, charging test,
voltage curve and engine diagnosis report, 350 each.
● Read or clear engine trouble codes.
● Dynamic display of data flow information, supporting 249 ECU operating parameters (live data)
● View freeze frame data and I/M status information.
● Check and turn off the engine indicator (MlL), clear the code, and reset the detector.
● Read vehicle information (Vehicle identification
number VIN, Calibration Identification
number IDs, Calibration Verification number CVNs)
OBDIl scanner & Battery Tester
● Dual system detection, optional engine system and transmission system.
● Test the 12V/6V Lead-acid Battery CCA (cold cranking amps)/
internal resistance/voltage/state of charge/state of health.
● Test the 24V/12V vehicle starting system and charging system.
● Built-in LED lights for battery and OBD II diagnosis status.
● One-key quick test function for batch battery continuous test,
real-time voltage curve, OBD II diagnosis.
● Real-time voltage curve graphic display, can be saved up to 120 seconds and played back.
● Can save up to 1750 historical test records,
including battery test, starting test, charging test,
voltage curve and engine diagnosis report, 350 each.
● Read or clear engine trouble codes.
● Dynamic display of data flow information, supporting 249 ECU operating parameters (live data)
● View freeze frame data and I/M status information.
● Check and turn off the engine indicator (MlL), clear the code, and reset the detector.
● Read vehicle information (Vehicle identification
number VIN, Calibration Identification
number IDs, Calibration Verification number CVNs)
ADT-00137FC NEW 0725
OBDIl scanner & Battery Tester
● Language: English, French, Dutch, German, Spanish,
ltalian, Russian, Portuguese, Polish and Finnish
● Display: 2.4” TFT Color Screen
● Supported Battery: All 12V & 6V lead-acid engine starting
batteries : Regular Flooded, AGM, GEL, EFB
● Supported Models: OBD II/EOBD car, SUV, light truck
● Supported Protocols: CAN, VPW, PWM, ISO9141, KWP2000
● Test Standard and Range:
JIS(26A17-245H528)
CCA/BCI/CA/MCA/EN/SAE(20-2000)
DIN/IEC(20-1400),GB(2-220Ah)
● Input Voltage: 5V-32V DC
● Operating Temperature: -10°C~60°C(14℉~140℉)
● Storage Temperature: -20°C~70°C(-4℉~158℉)
OBDIl scanner & Battery Tester
● Language: English, French, Dutch, German, Spanish,
ltalian, Russian, Portuguese, Polish and Finnish
● Display: 2.4” TFT Color Screen
● Supported Battery: All 12V & 6V lead-acid engine starting
batteries : Regular Flooded, AGM, GEL, EFB
● Supported Models: OBD II/EOBD car, SUV, light truck
● Supported Protocols: CAN, VPW, PWM, ISO9141, KWP2000
● Test Standard and Range:
JIS(26A17-245H528)
CCA/BCI/CA/MCA/EN/SAE(20-2000)
DIN/IEC(20-1400),GB(2-220Ah)
● Input Voltage: 5V-32V DC
● Operating Temperature: -10°C~60°C(14℉~140℉)
● Storage Temperature: -20°C~70°C(-4℉~158℉)
