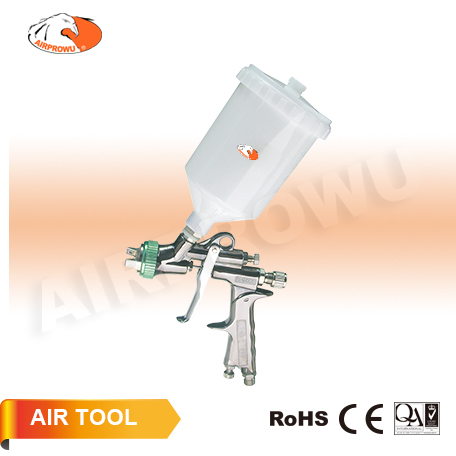

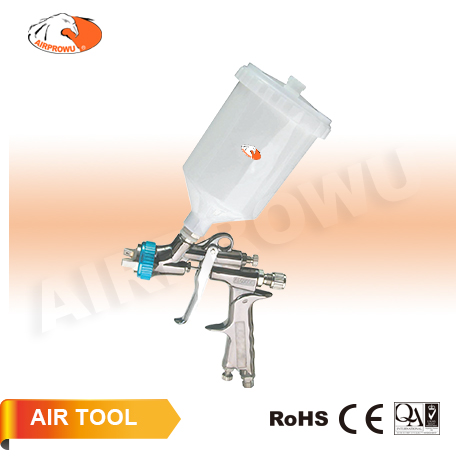

HVLP Gravity Feed Spray Gun w/0.6L Nylon Cup
Model :
AM5008HVLP
AM5008HVLP
HVLP Gravity Feed Spray Gun
w/0.6L Nylon Cup
● High transfer efficiency with low air consumption
● Provides wide fan pattern with superior atomization
● Environment friendly
● Die casting aluminum gun body
● Stainless steel fluid nozzle & needle
HVLP Gravity Feed Spray Gun
w/0.6L Nylon Cup
● High transfer efficiency with low air consumption
● Provides wide fan pattern with superior atomization
● Environment friendly
● Die casting aluminum gun body
● Stainless steel fluid nozzle & needle
AM5008HVLP
HVLP Gravity Feed Spray Gun
w/0.6L Nylon Cup
● Air Pressure 2 Bar(29 Psi)
● Air Cap Pressure <10 psi
● Air Inlet 1/4" NPS(PS)
● Fluid Inlet M16 X 1.5P
● Air Consumption 10 Cfm(283 L/min)
● Weight 0.95 Lbs(0.43 Kgs)
● Capacity Of Nylon Cup 0.6 Liter
● Standard Fluid Tip Size 1.3 mm
● Optional HW-0.6A.C 0.6 Liter Alum. Cup
● Optional HW-1.0A.C 1.0 Liter Alum. Cup
● Optional Nozzle Size 1.0, 1.2, 1.4, 1.5, 1.6, 1.8 & 2.0 mm
● High Solids Colors & Clear
● Repair Kit Part #5008RK
