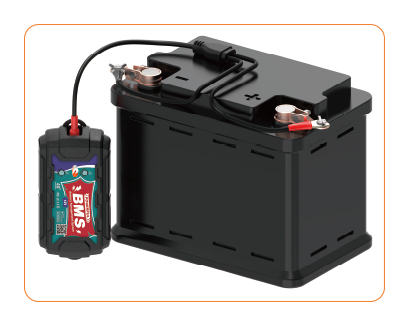

4G/ Wifi Battery Monitor
Model :
ADT-00128FC
ADT-00128FC NEW 0725
4G/ Wifi Battery Monitor
● Battery data transmit to cloud via wifi or 4G.
● Check battery information through the mobile app,
support iOS and Android system.
● Monitor battery voltage, internal resistance,
CCA (for engine start batteries), state of charge,
state of health, temperature and historical data.
● Automatically sends a reminder when the
battery power is low or the battery life is low.
● Can use the mobile app or computer browser to
remotely check the battery status anywhere.
● Store detailed historical data on cloud.
● 4G communication uses very little mobile
data and consumes very little power.
● Short circuit and reverse connection protection circuit.
4G/ Wifi Battery Monitor
● Battery data transmit to cloud via wifi or 4G.
● Check battery information through the mobile app,
support iOS and Android system.
● Monitor battery voltage, internal resistance,
CCA (for engine start batteries), state of charge,
state of health, temperature and historical data.
● Automatically sends a reminder when the
battery power is low or the battery life is low.
● Can use the mobile app or computer browser to
remotely check the battery status anywhere.
● Store detailed historical data on cloud.
● 4G communication uses very little mobile
data and consumes very little power.
● Short circuit and reverse connection protection circuit.
ADT-00128FC NEW 0725
4G/ Wifi Battery Monitor
● Application: All 12V batteries
● Voltage: 6V~18V
● Supported System: iOS and Android phones, Web Browser
● Test Standard and Range:
JIS(26A17-245H528)
DIN/IEC: 100-1400
CCA/BCI/CA/MCA/EN/SAE: 100-2000
GB: 30-220Ah
● Operating Temperature: -40℃~80℃ (-40℉~176℉)
● Average Operating Current: 1.5mA
4G/ Wifi Battery Monitor
● Application: All 12V batteries
● Voltage: 6V~18V
● Supported System: iOS and Android phones, Web Browser
● Test Standard and Range:
JIS(26A17-245H528)
DIN/IEC: 100-1400
CCA/BCI/CA/MCA/EN/SAE: 100-2000
GB: 30-220Ah
● Operating Temperature: -40℃~80℃ (-40℉~176℉)
● Average Operating Current: 1.5mA
