3/8" Double Diaphragm Pump
Model :
HD-5/ HD-8

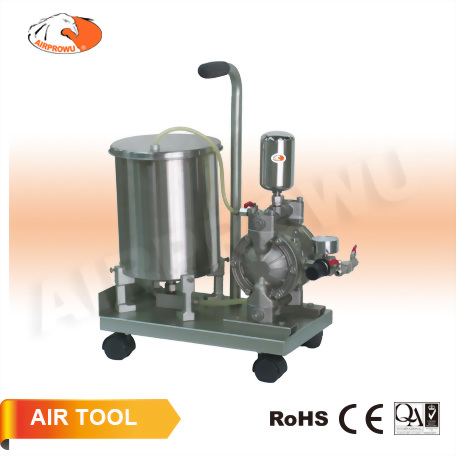

HD-5
3/8" Double Diaphragm Pump
(w/ 4 Liter Pot)
● Pot Capacity: 4 Liter
● Dimension: 513 x 250 x 600 mm
● Carton: 540 x 260 x 595 mm
● N.W/ G.W/ Cuft: 10.5/ 12.1 KG/ 2.9'
● Certificates: ISO 9001: 2008 /2006 /42 /CE
HD-8
3/8" Double Diaphragm Pump
(w/ 8 Liter Pot)
● Pot Capacity: 8 Liter
● Dimension: 513 x 250 x 600 mm
● Carton: 540 x 260 x 595 mm
● N.W/ G.W/ Cuft: 12.3/ 13.9 KG/ 2.9'
● Certificates: ISO 9001: 2008 /2006 /42 /CE
3/8" Double Diaphragm Pump
(w/ 4 Liter Pot)
● Pot Capacity: 4 Liter
● Dimension: 513 x 250 x 600 mm
● Carton: 540 x 260 x 595 mm
● N.W/ G.W/ Cuft: 10.5/ 12.1 KG/ 2.9'
● Certificates: ISO 9001: 2008 /2006 /42 /CE
HD-8
3/8" Double Diaphragm Pump
(w/ 8 Liter Pot)
● Pot Capacity: 8 Liter
● Dimension: 513 x 250 x 600 mm
● Carton: 540 x 260 x 595 mm
● N.W/ G.W/ Cuft: 12.3/ 13.9 KG/ 2.9'
● Certificates: ISO 9001: 2008 /2006 /42 /CE
HD-5 4L Pot
HD-8 8L Pot
3/8" Double Diaphragm Pump
● Fluid Inlet & Outlet Dimension: 3/8" PT
● Air Inlet & Outlet Dimension: 1/4" PT
● Pressure Ratio: 1 : 1
● Transmitting Capacity: 5.0 L/min (0.4 kg/cm2)
7.5 L/min (1.0 kg/cm2)
10.5 L/min (2.0 kg/cm2)
● Used Air Pressure: 1~5 kg/cm2
● Max. Painting Pressure: 5 kg/cm2
● Max. Pump Speed: 160 times/min (5 kg/cm2)
● Min. Pump Speed: 80 times/min (0.4 kg/cm2)
● Max. Fluid Temperature: 45°C
● Body Material of Construction: Aluminum
HD-8 8L Pot
3/8" Double Diaphragm Pump
● Fluid Inlet & Outlet Dimension: 3/8" PT
● Air Inlet & Outlet Dimension: 1/4" PT
● Pressure Ratio: 1 : 1
● Transmitting Capacity: 5.0 L/min (0.4 kg/cm2)
7.5 L/min (1.0 kg/cm2)
10.5 L/min (2.0 kg/cm2)
● Used Air Pressure: 1~5 kg/cm2
● Max. Painting Pressure: 5 kg/cm2
● Max. Pump Speed: 160 times/min (5 kg/cm2)
● Min. Pump Speed: 80 times/min (0.4 kg/cm2)
● Max. Fluid Temperature: 45°C
● Body Material of Construction: Aluminum
