3/4" Non Shut-Off Pistol Type Air Impulse Wrench
● 5-6 Bar (73-87 psi)
3/4" Non Shut-Off Pistol Type Air Impulse Wrench
● Impulse tool can reach torque will be slightly different as actual tightening torque.
● It will depend on condition of working area and joint situation.
● Testing the selected model in actual condition is advised.
● Please reference the following:
Hard joint application: 70% of the maximum torque range.
Soft joint application: The minimum of the torque.
3/4" Non Shut-Off Pistol Type Air Impulse Wrench
|
Model No. |
Bolt |
Torque |
Sq.Drive |
Free Speed (R.P.M) |
Length |
Weight |
Air |
Air |
Air |
Noise |
||
|
螺栓直徑 |
5-6 Bar |
無負載轉速 |
長度 |
重量 |
進氣口 |
氣管 |
耗氣量 |
噪音值 |
||||
|
mm |
Nm |
Inch |
4 Bar |
5 Bar |
6 Bar |
mm |
Kg |
PT |
mm |
m3/min |
db(A) |
|
|
Pistol Type Air Impulse Wrench ( Applicable Air Pressure 5-6 Bar ) |
||||||||||||
|

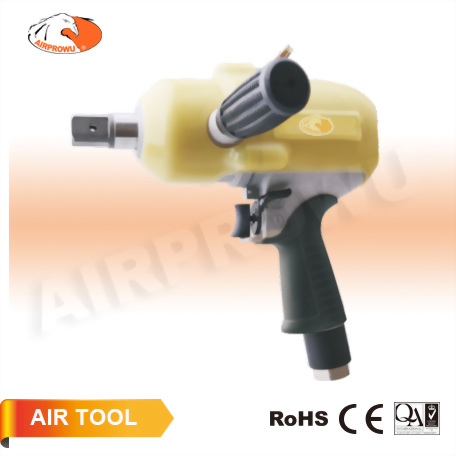

AOBN-180P-W |
16 - 18 |
220 - 300 |
3/4 |
- |
- |
3,200 |
226.5 |
3.00 |
3/8" |
12.7 |
0.70 |
82 |
|

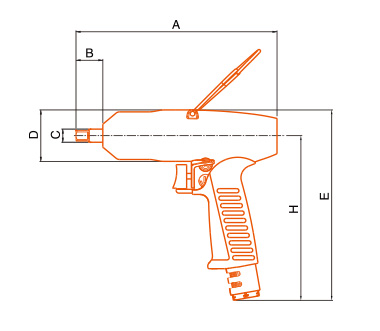

Model No. |
A |
B |
C |
D |
E |
H |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
|
AOBN-180P-W |
226.5 |
43 |
25 |
78.5 |
238 |
186 |
