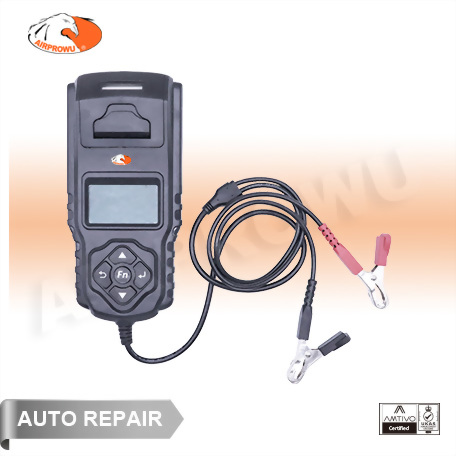

12V & 24V Lead-Acid Battery Tester (Built-In Printer)
Model :
ADT-00123FC
ADT-00123FC NEW 0725
12V & 24V Lead-Acid Battery Tester
(Built-In Printer)
● Test the CCA (cold cranking amps)/internal resistance/
voltage/State of Charge/State of Health.
● Test 12V/24V vehicle starting system and charging system.
● Unique custom fast key Fn, you can set one-button
test or one-button voltmeter mode.
● Built-in thermal printer to print test results.
● Built-in clock to set date and time.
● Automatically save the last test result for review.
● With reverse connection protection and short circuit protection.
● Automatic temperature compensation.
12V & 24V Lead-Acid Battery Tester
(Built-In Printer)
● Test the CCA (cold cranking amps)/internal resistance/
voltage/State of Charge/State of Health.
● Test 12V/24V vehicle starting system and charging system.
● Unique custom fast key Fn, you can set one-button
test or one-button voltmeter mode.
● Built-in thermal printer to print test results.
● Built-in clock to set date and time.
● Automatically save the last test result for review.
● With reverse connection protection and short circuit protection.
● Automatic temperature compensation.
ADT-00123FC NEW 0725
12V & 24V Lead-Acid Battery Tester
(Built-In Printer)
● Language: English, Japanese, Spanish, French,
German, Dutch, Italian, Chinese
● Application: All 12V lead-acid
(car, truck, motorcycle, boat) engine starting batteries
● Test Standard and Range:
JIS(26A17-245H528)
CCA/BCI/CA/MCA/EN/SAE(100-2000)
DIN/IEC(100-1400),GB(30-220Ah)
● Input Voltage: 8V~30V
● Operating Temperature: -10℃~60℃ (14℉~140℉)
● Printer operating temperature: 0℃~50℃ (32℉~122℉)
● Storage Temperature: -20℃~70℃ (-4℉~158℉)
12V & 24V Lead-Acid Battery Tester
(Built-In Printer)
● Language: English, Japanese, Spanish, French,
German, Dutch, Italian, Chinese
● Application: All 12V lead-acid
(car, truck, motorcycle, boat) engine starting batteries
● Test Standard and Range:
JIS(26A17-245H528)
CCA/BCI/CA/MCA/EN/SAE(100-2000)
DIN/IEC(100-1400),GB(30-220Ah)
● Input Voltage: 8V~30V
● Operating Temperature: -10℃~60℃ (14℉~140℉)
● Printer operating temperature: 0℃~50℃ (32℉~122℉)
● Storage Temperature: -20℃~70℃ (-4℉~158℉)
