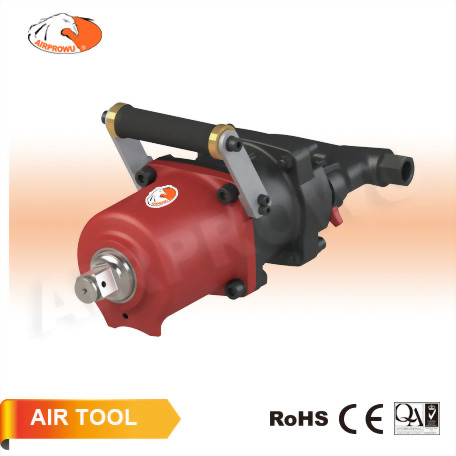

1" No Reaction Arm Pulse Torque Wrench w/ Torque Controller
Model :
SA24147-TC
SA24147-TC 1"
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Twin Hammer Mechanism
● Free Speed: 2,400 RPM
● Max. Torque: 1107-2952 ft-lb (1,500-4,000 Nm)
Torque Controller
● L x W x H: 43 x 20 x 45 cm
● Weight: 6 kg (13.23 lb)
Torque traceability system description
● Principle: Traceable calibration according to ISO6789 Standard

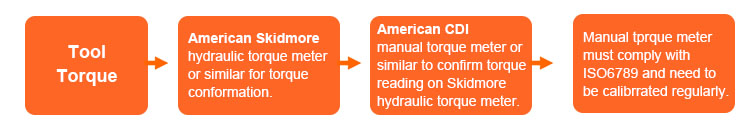

- Flow chart:
● Reminder: Please calibrate the tool according to the ISO6789 standard and calibrate regularly!
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Twin Hammer Mechanism
● Free Speed: 2,400 RPM
● Max. Torque: 1107-2952 ft-lb (1,500-4,000 Nm)
Torque Controller
● L x W x H: 43 x 20 x 45 cm
● Weight: 6 kg (13.23 lb)
Torque traceability system description
● Principle: Traceable calibration according to ISO6789 Standard
- Flow chart:
● Reminder: Please calibrate the tool according to the ISO6789 standard and calibrate regularly!
SA24147-TC 1"
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
Torque Controller
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
|
Model No. |
Square |
Free Speed |
Max Torque |
Length |
Net Weight |
Air |
|||
|
四方頭 |
無負載轉速 |
最大扭力 |
長度 |
重量 |
進氣口 |
||||
|
Inch |
R.P.M |
ft-lb |
N-m |
Inch |
mm |
lb |
kg |
NPT(PT) |
|
|
SA24147-TC |
1 |
2,400 |
1107-2952 |
1500-4000 |
12.99 |
330 |
24.03 |
10.9 |
1/2" |
Torque Controller
SA24147-TC 1"
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Principle Description:
- Using the patented ultra-precision air motor and patented ultra-precision force couple impact structure,
plus the precise control of pressure and air flow control, according to the theory of air dynamics,
work (W) = air pressure (P) X total flow (V), the output of air energy is converted into torque,
so the traditional mechanical pulse torque that cannot be precisely controlled is transformed into a
precision mechanical pulse torque that can accurately control torque ! This is the world's first technology!
● Overall Function Diagram:
● Mechanical pulse generation area (patented):
- Using ultra-precision patented force couple structure and computer precision machining,
the mechanical kinetic energy is converted into mechanical pulse torque.
● Ultra-precision torque control motor (patent):
- Use patented technology to convert air pressure energy into kinetic energy.
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Principle Description:
- Using the patented ultra-precision air motor and patented ultra-precision force couple impact structure,
plus the precise control of pressure and air flow control, according to the theory of air dynamics,
work (W) = air pressure (P) X total flow (V), the output of air energy is converted into torque,
so the traditional mechanical pulse torque that cannot be precisely controlled is transformed into a
precision mechanical pulse torque that can accurately control torque ! This is the world's first technology!
● Overall Function Diagram:
● Mechanical pulse generation area (patented):
- Using ultra-precision patented force couple structure and computer precision machining,
the mechanical kinetic energy is converted into mechanical pulse torque.
● Ultra-precision torque control motor (patent):
- Use patented technology to convert air pressure energy into kinetic energy.
